SMQ Steering Device

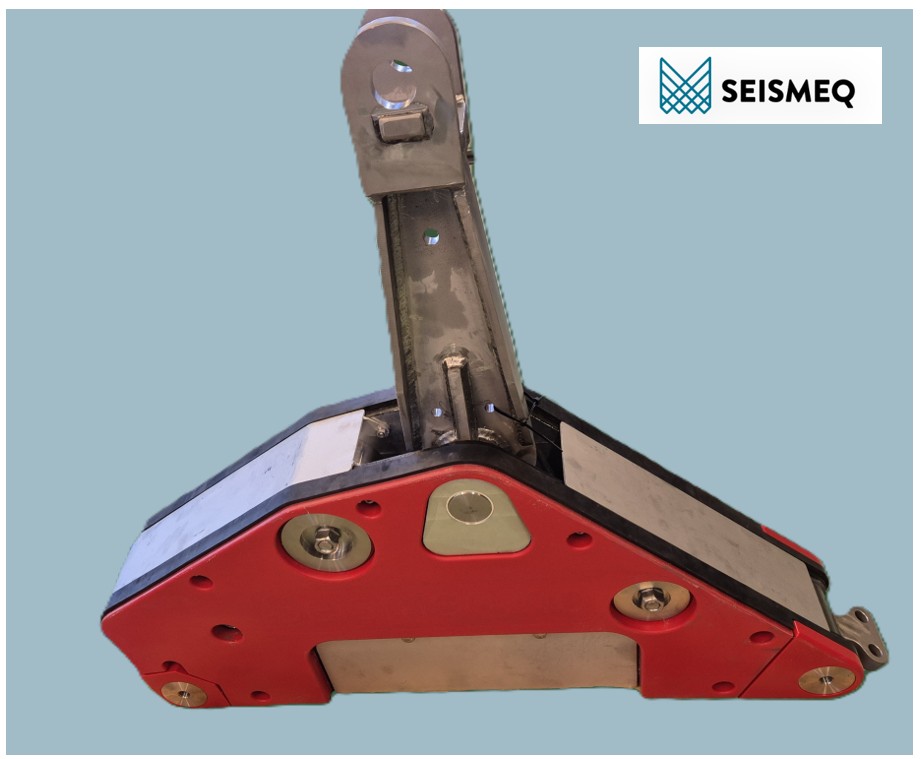

The SMQ®Steering Device has been tailored to the characteristics of the SMQ®Deflectors.Several sets of our inhouse developed SMQ steering device have been delivered and been put successfully into operation.

• Direct function design brings significant advantages by its low complexity.
• The AOA is adjusted by moving the lever arm position relativ to the bridle block.
• The AOA can be changed during operation allowing for full utilisation of the deflectors capasity vs specifications for the spread , speed and fuel optimization.

Connection of the SMQ®Steering Device

• The SMQ®Steering device is connected by cable to the termination head of the umbilical, and further through the slip ring with a connection box.
• Total 8 wires are required in the umbilical, 3 for power (230 Volt) and 5 for signal.
• The SMQ®Steering device will deliver a signal that indicates the current position of the lever arm. Also a signal for overheating of motor.
• In the connection box is a radio connector.
• This radio connector is linked to a handheld device.
• Alternative the steering can be adjusted automatically by the navigation system.

Remote power and control

A fully remote powe and control system are being devloped and will allow for the SMQ Steering device to be operational with out any hardwiring through cable to the vessel were this is preffered.
